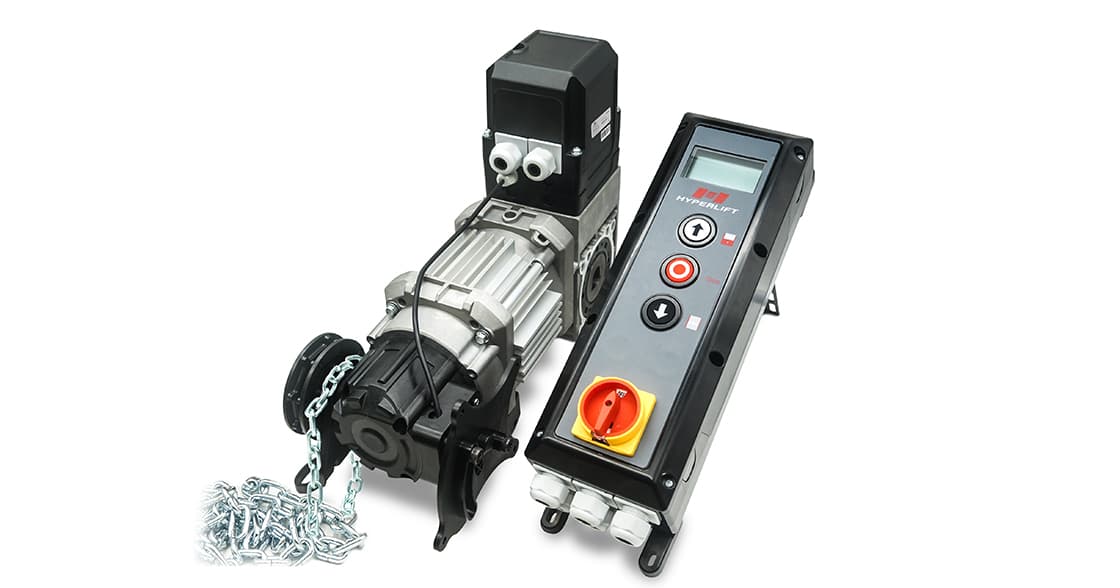

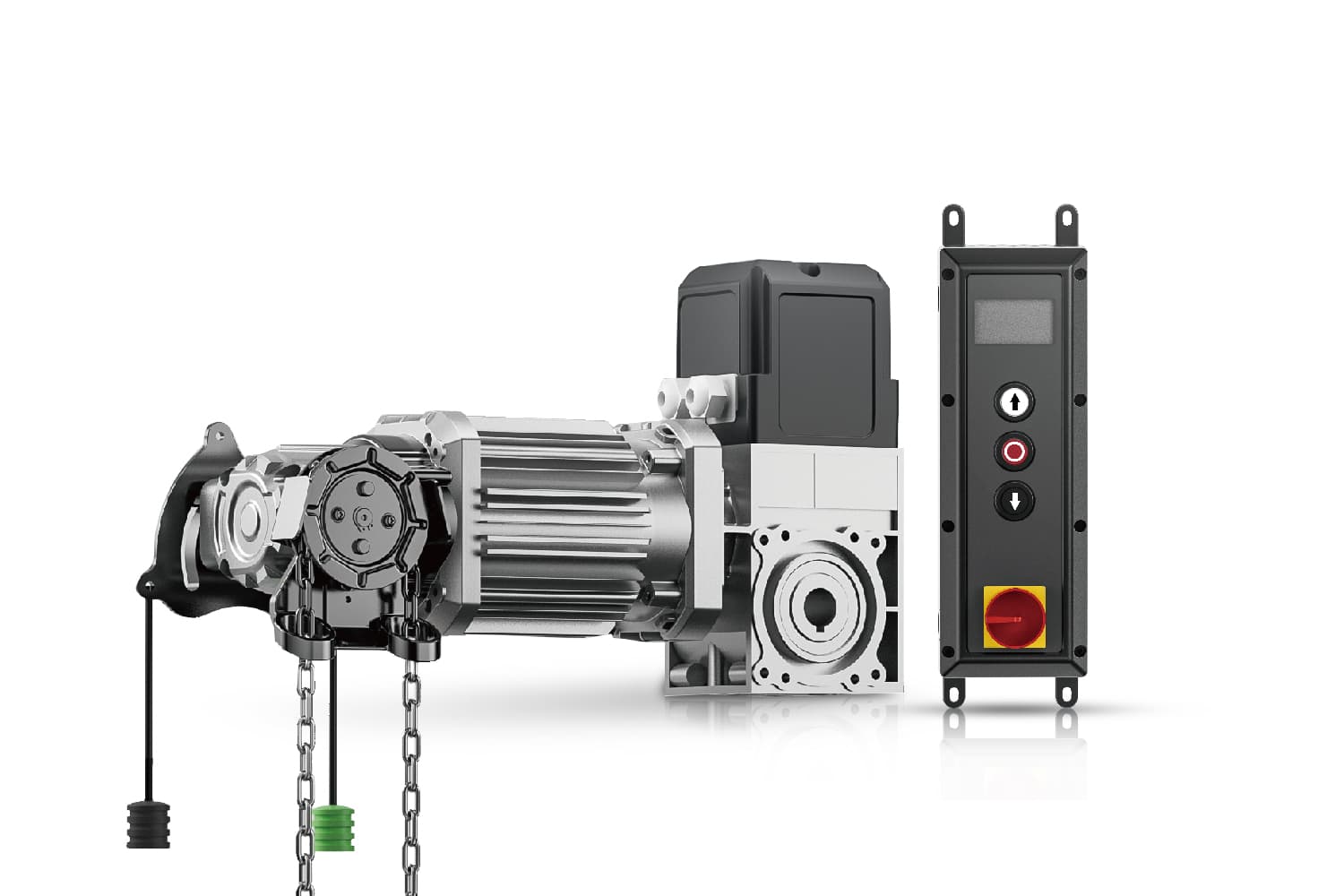

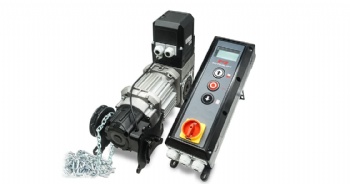

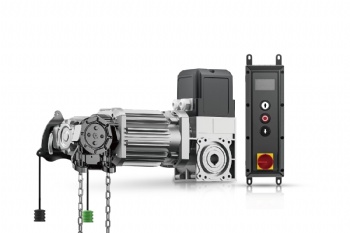

HM Sectional door operator 400V

Application: Sectional Door

High Performance

• Accurate limit setting by encoder

• Automatic closing by timer or passing through the photocell

• Multiple safety inputs for safety edges, light curtains, photocells, radars, loop detectors, etc.

• Traffic light function

• Clear text display for easy programming

• Service indicator for setting the number of maximum door cycles until the next service

• Clear text failure messages

• Multiple language display, six languages available

• Main switch as standard

• Various inputs are needed for pull switches, key switches, etc.

• Three programmable relay outputs

Technical Parameters

Motor power in W	800 / 1100
Torque in Nm	100 /140
Waterproof and Dustproof Rating	IP54(IP65available)
Voltage	3N-400V 50 / 60Hz
Speed in RPM	30
Diameter hollow shaft in mm	25.44 /31.75
Endurance in c/h	35

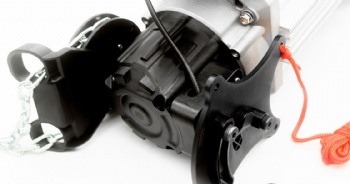

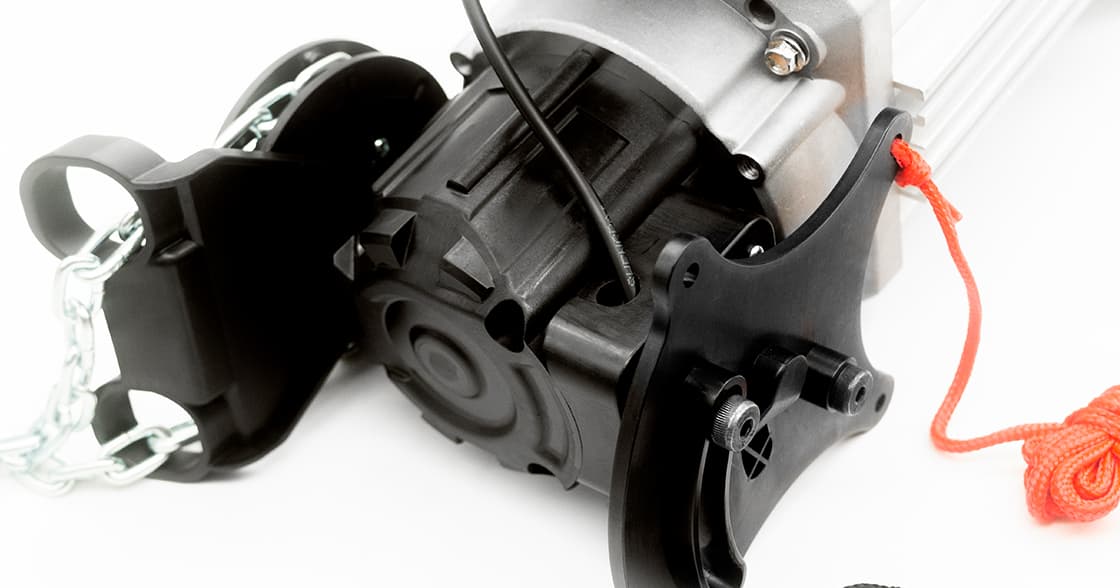

Emergency release	chain hoist
Limit setting of door travel	Digital encoder
Max. door area in ㎡	40 / 49
