NHentrance Co., Ltd. presents our high-speed metal industrial door, designed to integrate speed, energy efficiency, sealing, wind resistance, and environmental protection. Renowned for its high reliability and practicality, this door operates over six times faster than traditional industrial sectional doors, making it an ideal replacement due to its superior efficiency.

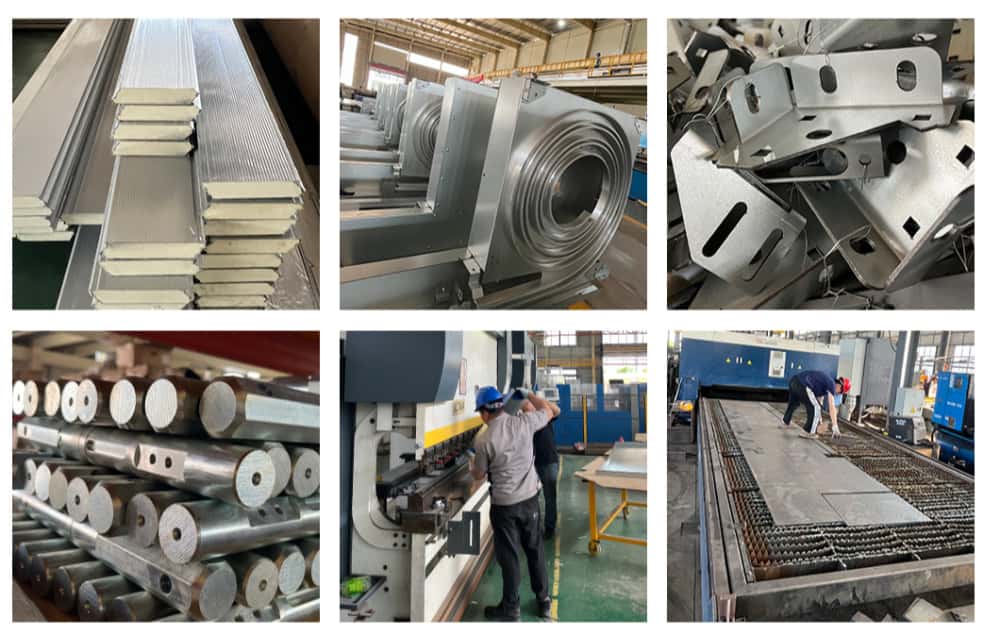

The door panels are produced using advanced French technology on a large-scale production line. Filled with industrial polyurethane insulation, the panels feature a thermal break design that effectively prevents indoor and outdoor temperature loss, ensuring significant energy savings. Hinges connect the ends, and double-sided sealing strips between panels provide excellent sealing and strong resistance to convective wind pressure.
Our turbo rigid high-speed door not only prevents unauthorized access but also withstands weather changes, effectively isolating indoor and outdoor air exchange. It is perfect for high-traffic areas, offering an optimal solution for industrial energy conservation and cost reduction.
Technical Parameters
| Speed | Up to 2.5m/s (98.43 inches/second) with servo drive. Maximum speed depends on door size. |
| Size | Minimum: 1000mm(3.28’DOW) x 1000mm(3.28’DOH) Maximum: 8000mm(26.25’ DOW) X 9000mm(29.53’DOH) |
| Panel Material | 0.7mm(0.028”) thick is for aluminum plate |
| Drive System | Using three kinds of servo-motor: 0.75KW, 1.5KW and 2.2KW. This depends on the door size. Each motor assembly is with gearbox and brake. Servo-drive control the running of motor. motor drive the panel through the transmission chain and drive shaft and lift chain. The tension spring will counterbalance the weight of panel. |
| Electrical Requirements | standard: 220V/1PH/50/60Hz(servo-motor) |
| Vision Options | The material is transparent PC with a thickness of 2mm. |
Control Box | Servo-drive, metal enclosure size: 250mm (9.84”W) X 450mm(17.72”H) X 150mm(5.91”D) |
| Panel Retention | Guide rollers maintain panel tension over the entire length of the side frame. When the door width is less than or equal to 3M (9.84 ft.), the wind pressure is 32 M/S (3.5 KPA, 71.6 MPH). Larger doors will have wind pressures below this value. |
| Safety Features | low level: one pair of photoelectric sensors and wireless airbags high level: two pairs of photoelectric sensors and wireless airbags option: light curtain |

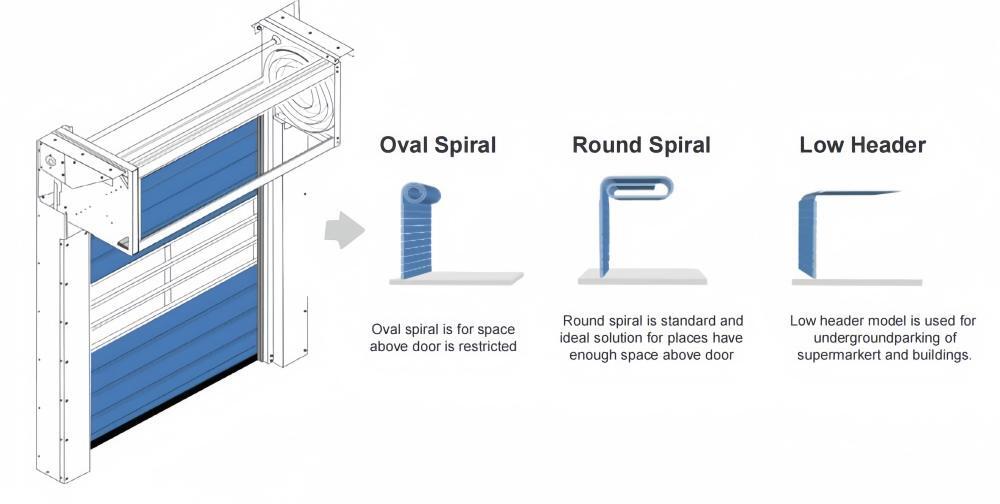

| Lift style | Round Spiral, Oval Spiral |
| Warranty | 13 months after delivery low level: 70,000 cycles or 1 year high level: 150,000 cycles or 2 years |
Advantages

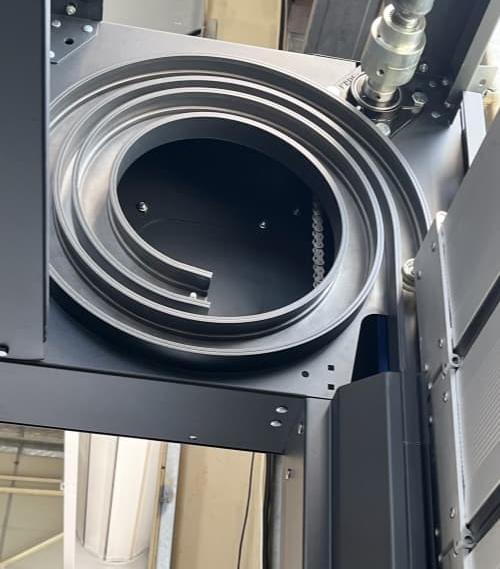

√ Rapid Operation: Opening speed adjustable from 0.8m/s to 2m/s. Utilizes the Archimedean spiral principle with a double-layer turbine structure to reduce resistance and friction, ensuring smooth, high-speed operation.
√ Wind Resistance and Insulation: Door panels feature a patented thermal break design for superior insulation, meeting National Standard Level 3 for insulation. Can withstand winds up to level 12, with wind resistance rated at National Standard Level 3.
√ Low Failure Rate: Capable of thousands of open/close cycles per day. Over 1 million cycles of operation without failure.
√ Intelligent and Convenient: Multiple intelligent opening options, including radar, geomagnetic, remote control, Bluetooth, and app. Features one-touch start, interlock, linkage, and customizable options based on needs.
Applicable Places
Industrial plants, fire rescue, textile, electronics, printing, cold chain logistics, supermarkets, assembly shops, waste treatment stations, 4S stores, transportation hubs, warehousing logistics etc.
Color Selection

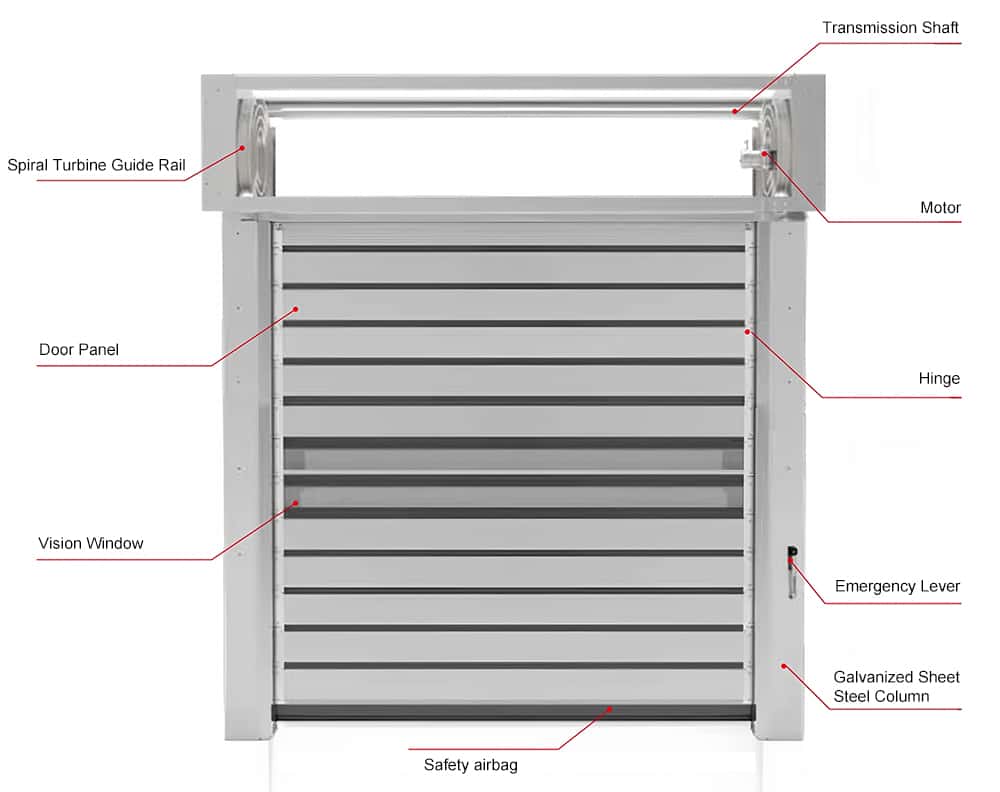

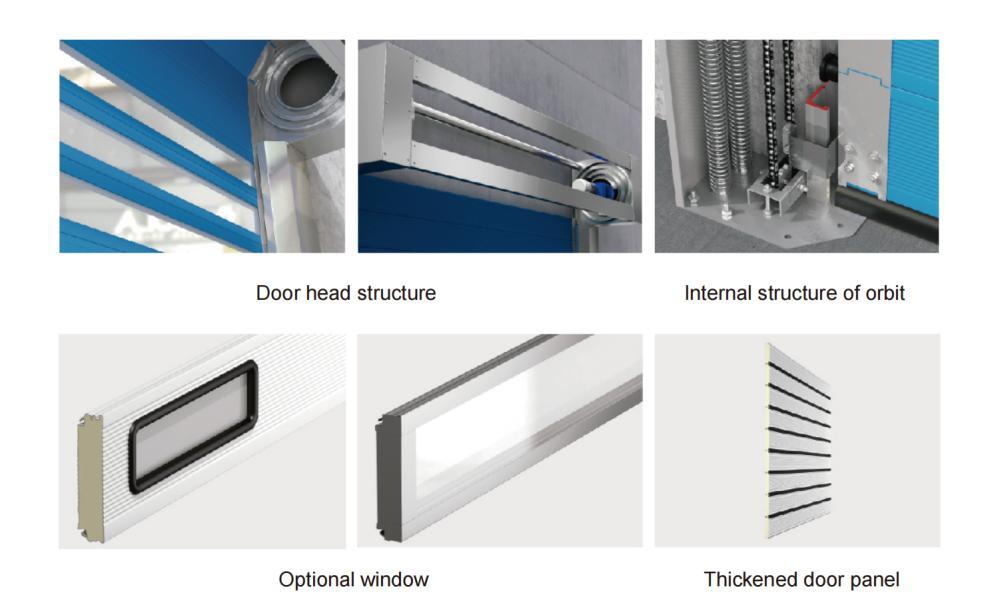

Door Structure

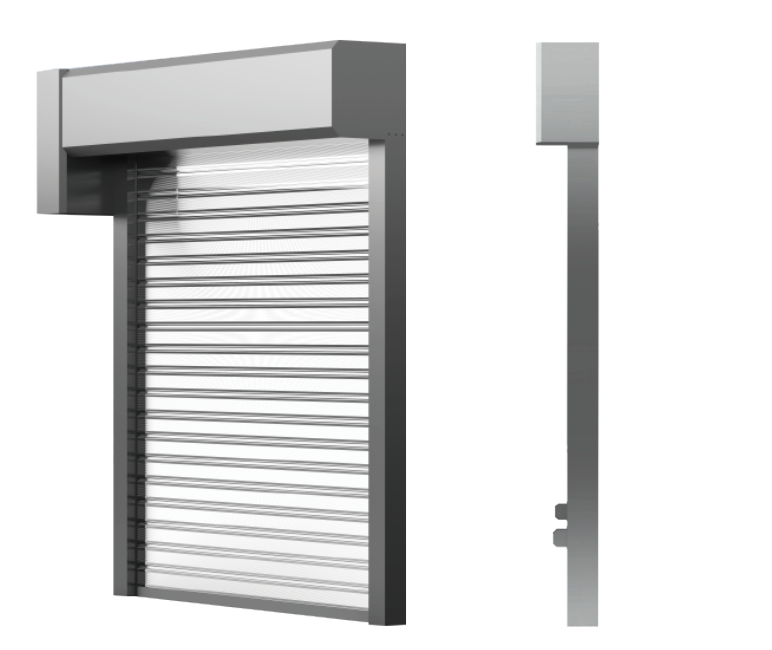

Door Design
All designs to ensure the ability to fit restricted structural conditions
You can rely on our spec to select the correct product for your application.

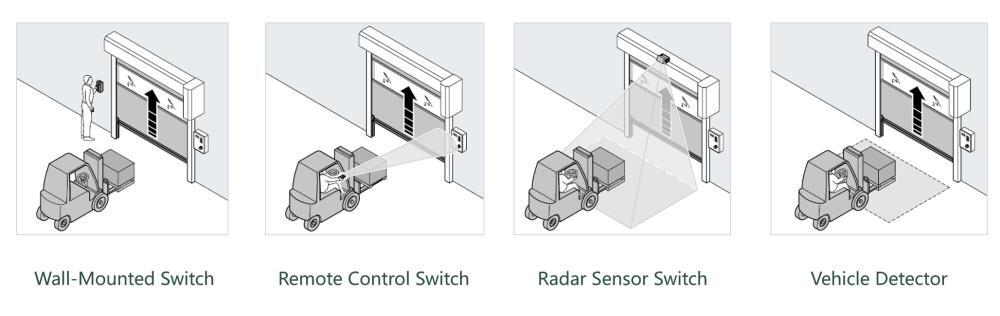

Opening Methods
